Key features:

– Machine is designed to automatically cut (through user input) pre-set length, and quantity sheets of PVC coated fabric from rolls up to 250 kg.
– Cut panels are stored in an easily accessible bin at the bottom of the machine.
– Custom machines available to accommodate different sized rolls.
– Weld-free body is made of powder coated steel with aluminum frame.

Specifications:

– Working pressure: 6 atm (88 PSI)
– Maximum roll width: 2000 mm (78.7″)
– Maximum roll diameter: 500 mm (19.6″)
– Maximum roll weight: 250 kg
– Overall dimensions (LxDxH): 2982 mm x 1395 mm x 1618 mm (117.4″x54.9″63.7″)
– Voltage: 230 V
– Power: 0,5 kW
– Weight: 720 kg

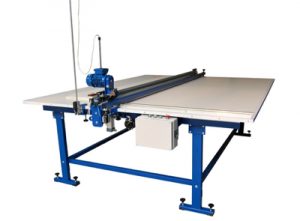

The End cutter OT-3/S is intended for cutting solid and heavy materials and is widely used for material cutting during manufacturing process. On your request we can develop OT-3/S for cutting of: plastic, polyester, PVC, felt, carpets, coco mats. Maximum cutting thickness is up to 2 cm, depending on the type of material. The advantage of this cutting table is that through the thick material goes just a thin blade, not the leg of cutting knife.
Pay attention to the energy consumption of this machine: the motor that drives the circular blade is used for moving the cut-off device on guide (1 motor performs two functions).
Another advantage is the absence of idle (process of cutting takes place in two directions).
Pressing a button on the control box at any time you can stop end cutter e.g. to change the direction
and continue cutting.
The kit includes pneumatic clamping line, which will provide a strong and stable pinning of the material. You can adjust the clamping line by using the joystick. Working air pressure for the clamping line is 3-5 atmospheres.
Is supplied in a wooden box that provides reliable protection the equipment during transportation.

Specifications:
Power supply: ~ 3phase/400V/50Hz
Motor power: 250W
Round knife speed: 1450 rpm
Round knife diameter: 125 mm (optional – 150 mm)
Max. cutting speed: 0,4 m/s
Max. cutting length: 2500 mm
Clamping line working pressure: 3-5 atm

Cutting height: 160 mm
Knife-stroke: 39 mm
Motor speed:
– 2800 rpm – 50 Hz
– 3350 rpm – 60 Hz
Connection: 400 V, 50/60 Hz 3-phase
Power consumption: 790 W
Weight: 14,5 kg

Cutting height: 90 mm depending on material
Knife-stroke: 36 mm
Motor speed:
– 2800 rpm – 50 Hz
– 3350 rpm – 60 Hz
Connection: 230 V, 50 Hz AC 400 V, 50/60 Hz 3-phase
Power consumption: 245 and 370 W
Weight: 8,4 kg

Cutting height: 70 mm depending on material
Knife-stroke: 12-15-18 mm
Connection: 220-250 V, 50-60 Hz
Power consumption: 140 W
Weight: 6 kg

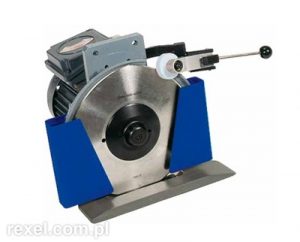

Cutting height: 20 mm depending on material
Cutter diameter: 200 mm (circular/multi-curved)
Cutter speed: 1350 rpm Option: 2800 / 1400 rpm
Connection: 400 V, 50 Hz 3-phase
Power consumption: 180W /300W
Weight: 9,5 kg

Cutting height: 55 mm depending on material
Cutter diameter: 120 mm (circular/multi-curved)
Cutter speed: 2800 rpm
Option: 2800 / 1400 rpm
Connection: 400 V, 50 Hz 3-phase
Power consumption: 370 W, 250/180 W
Weight: 10,5 kg

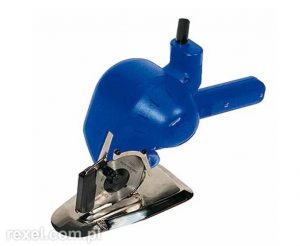

Cutting height: 25 mm depending on material
Cutter diameter: 100 mm (multi-curved cutter)
Cutter speed: 750 rpm
Connection: 220 -250 V, 50-60 Hz
Power consumption: 200 / 238 W
Weight: 3 kg

Cutting height: 27 mm depending on material
Cutter diameter: 80 mm (multi-curved cutter)
Cutter speed: 1150 rpm
Connection: 220 -250 V, 50-60 Hz
Power consumption: 140 W
Weight: 2,5 kg

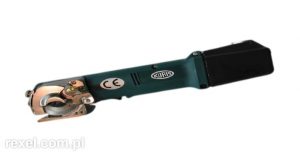

Rechargeable handheld cutter MB 60
Cutting height: 8mm
Cutter speed: 1200 rpm
Weight: 1,2kg
Battery type: NICD
Nominal voltage: 9,6 V
Capacity: 1,2 AH

Cutting height: 8 mm
Cutter diameter: 50 mm
Cutter speed: 1.500 rpm
Connection: 220 -230 V50-60 Hz
Power consumption: approx. 56 W
Weight: 1.000 g (w/o cable)

Cutting height: 8 mm (depending on material)
Cutter diameter: 50 mm (multi-curved cutter)
Cutter speed: 2.600 rpm
Connection: 220 -250 V, 50-60 Hz
Power consumption: approx. 56 W
Weight: 850 g (w/o cable)

Cutting height: 8 mm
Cutter diameter: 50 mm
Cutter speed: 3.000 rpm
Connection: 220 -230 V50-60 Hz
Power consumption: approx. 56 W
Weight: approx. 850 g (w/o cable)

– cuts all textiles and almost all synthetic materials
– quiet, low-vibration operation
– light rollers with needle bearings
– consistently clean cutting
– perfect handling: single-handed machine operation with a clear view
– fully automatic grinding device – grinding belts can be easily and conveniently replaced.
– highest level of safety provided by the automatic finger guard (available as an option, mandatory in Germany).

Specifications:

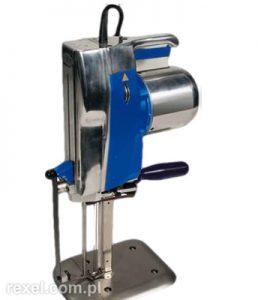

1) KM-10-T(-WS) Three-phase version
Voltage:    3 ~ 400 V, 50–60 Hz
Power:    800 Watts
Cutting height:    210 mm
Weight:    approx. 15.5 kg
with automatic finger guard:    approx. 17 kg
Machine height:    approx. 620 mm
with automatic finger guard:    approx. 720 mm

– cuts all textiles and almost all synthetic materials
– quiet, low-vibration operation
– light rollers with needle bearings
– consistently clean cutting
– perfect handling: single-handed machine operation with a clear view
– fully automatic grinding device – grinding belts can be easily and conveniently replaced.
– highest level of safety provided by the automatic finger guard (available as an option, mandatory in Germany).

Specifications:

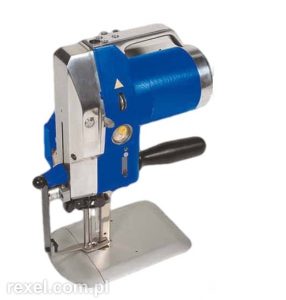

1) KM-8-S(-WS) single-phase version
Voltage:    1 ~ 230 V, 50–60 Hz
Power:    670 Watts
Cutting height:    160 mm
Weight:    approx. 10.5 kg
with automatic finger guard:    approx. 16.5 kg
Machine height:    approx. 520 mm
with automatic finger guard:    approx. 620 mm

2) KM-8-T(-WS) three-phase version
Voltage:    3 ~ 400 V, 50–60 Hz
Power:    800 Watts
Cutting height:    160 mm
Weight:    approx. 10.5 kg
with automatic finger guard:    approx. 16.5 kg
Machine height:    approx. 520 mm
with automatic finger guard:    approx. 620 mm

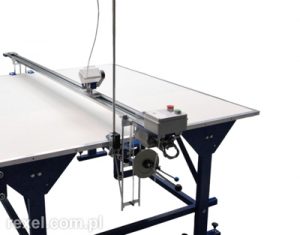

The automatic end cutter OT-1/A is used in plants or wholesale outlets for cutting textile materials.
It quickly and accurately cuts a segment of fabric to the required length. Therefore, it can be installed as an
additional device for the cutting table, rewinding machine, or the textile inspection machine. On these
machines can be installed the cutting length counter and the counter of cut sections.
Working principle:
The work cycle on the end cutter OT-1/A is automatic (While cutting, the material knife moves in the
guide way independently). At client’s request, REXEL will produce an end cutter the necessary length (e.g.
for a non-standard width of cutting table).

Specifications:

Voltage   230V
Current   1,04A
Knife motor power   120W
Trolley motor power   120W
Blade diameter   108 mm
Round blade speed    2200 RPM
Trolley movement speed    0,5 m/s
Gear gable diamter   5 mm
Toothed belt type  T5/280 mm(width.9~10 mm)

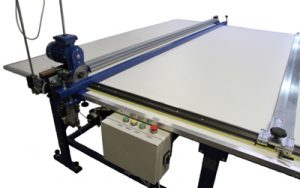

The End cutter OT-3 is intended for cutting solid and heavy materials and is widely used for cutting the material during the roller blinds, indoor blinds manufacturing. The advantage of this cutting table is that through the thick material goes just a thin blade, not the leg of cutting knife.
Pay attention to the energy consumption of this machine: the motor that drives the circular blade is used for moving the cut-off device on guide (1 motor performs two functions).
Another advantage is the absence of idle (process of cutting takes place in two directions).
Pressing a button on the control box at any time you can stop end cutter e.g. to change the direction
and continue cutting.
The kit includes pneumatic clamping line, which will provide a strong and stable pinning of the material. You can adjust the clamping line by using the joystick. Working air pressure for the clamping line is 3-5 atmospheres.Is supplied in a wooden box that provides reliable protection the equipment during transportation.

Specifications:
Voltage:                                3-phase/380V
Wattage:                               250 W
Material thickness:                 up to 20 mm
Material width:                       up to 220 cm
Knife rotation speed:              1350-1450 rpm
The knife movement speed:   0.5 m / s
The diameter of the blade:     125 mm

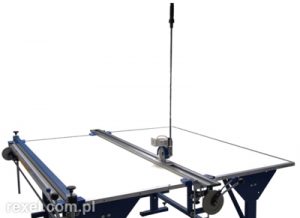

The manual end cutter OT-1/R is the device, which is used in plants or wholesale outlets for cutting textile materials. Its task is quick and accurate cutting required length of the of fabric piece. Therefore, it can be installed as an additional device for the cutting table, rewinding machine, or the textile inspection machine. On these machines can be installed the cutting length counter and the counter of cut sections. Working principle: The work cycle on the end cutter OT-1/R is manual. At client’s request, will produce an end cutter the necessary length (e.g. for non-standard width of the cutting table).

Key features:

– Machine is designed to cut exact length and winds fabric onto a core.
– Best suitable for non-elastic fabrics.
– Fabric edge sensor for even edge during rewinding.
– After exact length is measured the automatic rolls stop and knife cuts through fabric.
– Speed is adjustable on front and back feed rollers.
– Machine can be produced with different specifications.
– Control panel is installed on swivel arm ensuring easy operation.
– Control panel has high quality touchscreen.
– User-friendly interface available in Polish, English or Russian (other languages upon request).

Specifications:

Roll maximum width: 1700 mm (66.9”)
Roll maximum diameter: 360 mm (14.7)
Roll maximum weight: 40 kg (88.1 lbs)
Overall dimensions (LxWxH): 2858 mm x 1383 mm x 1935 mm (112.5” x 54,4” x 76.1”)
Voltage: 230 V AC
Power: 0,65 kW

Yarn winding machine.

– Bobbin blockage function
– Timer
– Small size, light weight
– It can wind two bobbins at the time

Specifications:

Power: 230 V
Winding time: 30 min
Maximum speed: 1380 rpm
Bobbin diameter: 97 mm
Dimensions: 395x240x250h mm
Weight: approx. 19.50 kg.

Key features:

– Rewinding / inspection machines with backlighting screen provide fast, easy quality control and measure fabric length.
– Machines can have a built-in lay manual (version /R) or semi-automatic (version /A) end-cutter for increased efficiency in the workplace.
– A perfect choice for all textile manufacturers and businesses that deal with any kind of fabric.
– The machine winds fabric from a roll placed inside the cradle on a core placed on a winding shaft.
– High winding speed (50 m/min or 60 m/min).
– Mechanical counter (yards or meters).
– Easy fabric roll installation.
– Frame made of powder-coated steel.

Available models:

PP-3S Rewinding-inspection machine with backlight and more powerful winding unit (from the roll cradle onto the tube), and length measurement device.
PP-3S/R Additionally equipped with manual fabric end cutter OT-1/R.
PP-3S/A Additionally equipped with semi-automatic fabric end cutter OT-1/A.

Specifications:

Model:    PP-3S
Maximum width of fabric roll:    190 cm (74,80″)
Maximum roll diameter:    50 cm (19,69″)
Maximum rewindable weight of roll:    70[kg]
Voltage:    230[V]
Wattage:    0,55[kW]
Maximum winding speed:    50-60 m/min
Screen size:    200 x 50 cm (78.74″ x 19.68″)
Screen:     Yes
Сounter for yards or meters:    Yes
Cradle for roll:    Yes
