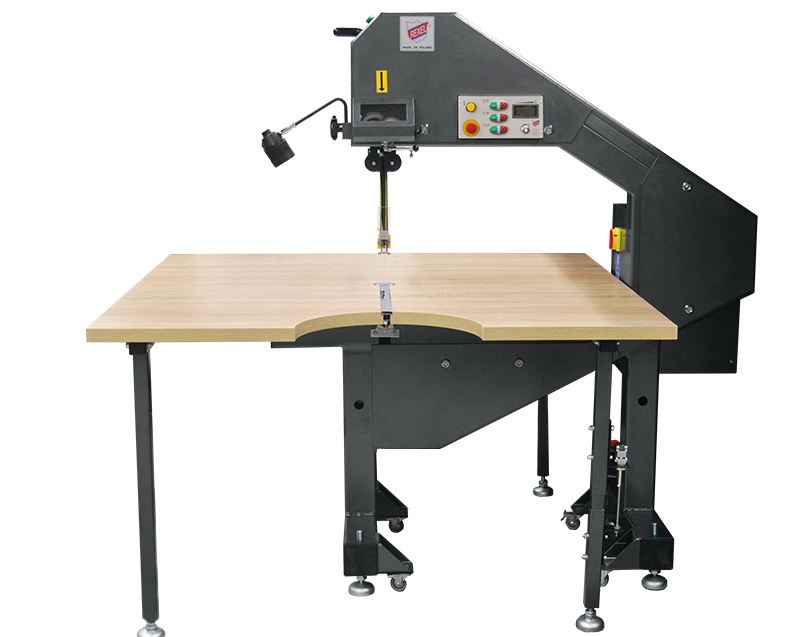

Band knife machine Rexel R750 it’s easy to use and highly productive equipment. It has high precision cutting of textile materials (cotton, knitted fabrics, synthetic fabrics, insulation, etc.). Multiple layers of fabric can be cut by Rexel R750 (thickness up to 200 mm, some insulation up to 300 mm). Maximum and minimum thickness depends on type of the material.
Band knife machine can be used as a standalone workstation or with a cutting table Rexel SK-3.
Band knife machine Rexel R750 is very easy to operate and is equipped with a grinding device, which provides high quality sharpening with minimal wear of band knife.
Variable speed control allows you to set any appropriate speed for all types of materials. Rexel R750 is equipped with the special detector (responsible for the work of band knife blade) and the band knife security system (protects band knife blade from escape from the course).
Machine is equipped with a lamp with separate switch. Also it is equipped with a mechanical tape catcher. Thank to this solution working with band knife machine become to be safer.

Specifications:

Model:    R750
Tabletop dimensions:    1500 x 1500 mm (59.05″ x 59.05″)
Overall dimensions (LxWxH):    1900 x 1500 x 1700 mm (74.8″ x 59.05″ x 66.95″)
Cutting height:    250 mm (9.85″)
Band length:    3800 mm (149.6″)
Arm length:    750 mm (29.55″)
Knife speed:    0-18 m/s (59 ft/s)
Guide wheels quantity:    3
Voltage (optional 230 V / 50 Hz):    400 V / 50 Hz
Motor Power (optional 2,2 kW):    1.5 kW
Inverter for speed variation:    Yes
Tabletop with air-cushion or smooth:    Yes
Sharpening device:    Yes
Operating light:    Yes
Mechanical bandknife catcher:    Yes
Vacuum system (optional):    Yes
Touchscreen control panel:    No
Control panel with buttons:    Yes
Castors for easier installation:    Yes
Measuring stop PR-3 (optional):    Yes
